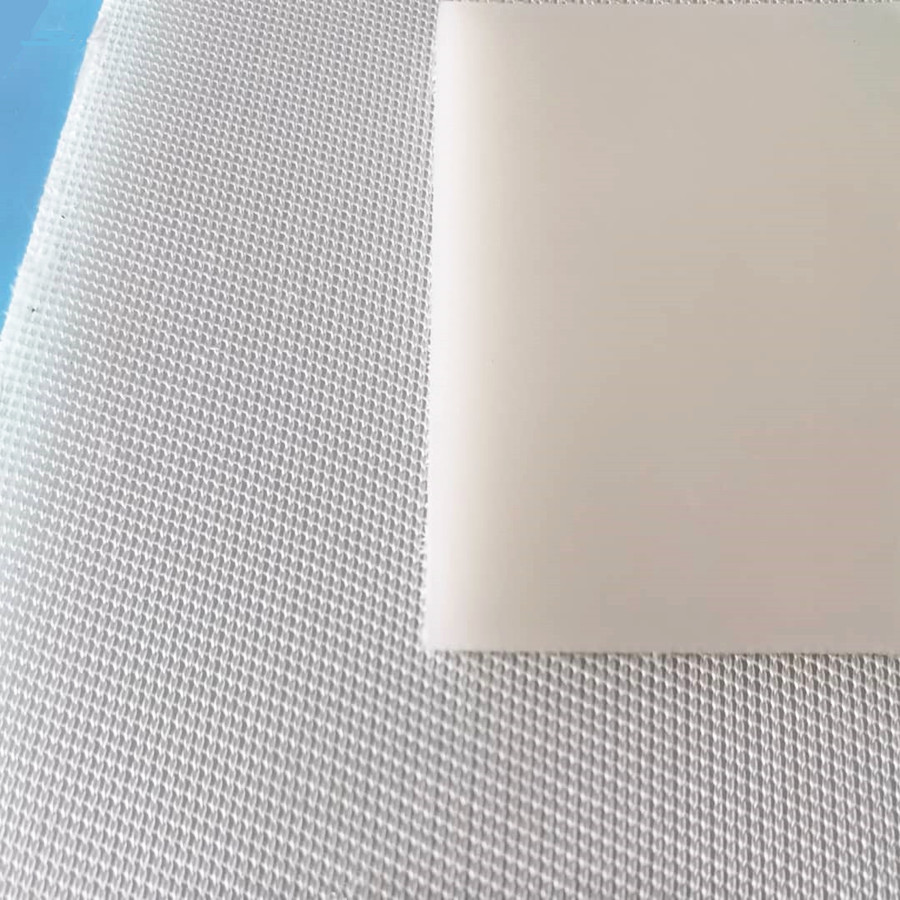

PVDF GK SHEET - Glass Fiber Backed PVDF plate

PVDF (polyvinylidene fluoride) exhibits excellent mechanical strength and toughness, stiffness, high dielectric strength, abrasion resistance, creep resistance, high purity, chemical inertness, low flammability and low moisture absorption. Its inherent chemical resistance and high purity make PVDF ideal for application in contact with high purity water, acids, chlorine, halogenated solvents and petrochemical mixtures.


Main Application

· Chemical tank liners

· Semiconductor equipment components

· Pipe &Fittings, seal and gaskets

· Pump and valve parts

· Corrosive fluid handling

· Pure water application

· Plating tanks

· Food and pharmaceutical industries

· Nozzles

     Key Features

     1)   Temperature: -30°C up to +140°C (150°C short term).

     2)   Good chemicals resistance.

     3)   Good electrical insulation properties.

     4)   Excellent resistance to UV and weathering.

     5)   High purity and very low water absorption

     6)   Good resistance to wear

     7)   Good weldability

     8)   FDA approved

Size for Semi-finished PVDF Shapes
